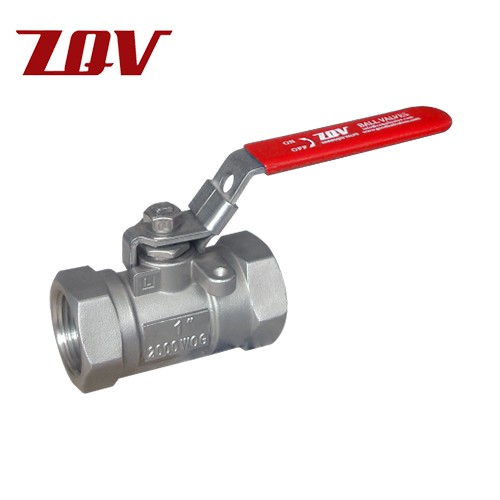

1PC Unibody Ball Valve 2000PSI - Series2018S
1000# STAINLESS STEEL BALL VALVE
Size Range
¼ - 2" (8 - 50mm)
Body Materials
ASTM A351 Gr CF8M
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Stem Materials
ASTM A182 F316
Pressure Rating
2000 psi WOG (137 Bar)
Seat Materials
RPTFE
Shutoff Rating
Zero Leakage
Ball Materials
ASTM A182 F316
Body Style
One Piece
Design Standard
MSS SP-110
End Connections
Threaded - NPT
Testing Standard
MSS-SP 72
Ports
Reduced Port
Face to Face
Manufacturer Standard
Applications
General Service, Air, Water, Oil & Gas, Fire Safe
