Description

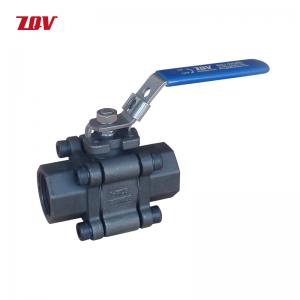

ISO5211 Mounting Pad-1500&2000PSI Full Port Carbon Steel WCB 3PC Threaded End Ball Valve
Port: Full Port / Reduced Port
Size: 1/4" to 2"
Pressure:
1500PSI 1500WOG (1-1/2" to 2")
2000WOG 2000PSI (1/4" to 1-1/4")
Body: Carton Steel WCB / Stainless Steel CF8M/CF8
Seat: RPTEF
Max Temp: 450ºF 232ºC
Ends:
ASME B1.20.1(NPT)/DIN 259/ DIN2999/ISO228/BSP/PT Threaded End
ASME B16.11 Socket Weld
ASME B16.25 Butt Weld
Features:
3-Piece Investment Casting Body
Anti-static device
Lockable Lever Handle
Blow-out-proof Stem
150PSI Saturated Steam
250PSI Steam Service(Multi-Seal Seat)
Sepcifications:
ASME B16.34-Shell & Seat Pressure Test
ISO 5211 Mounting Pad
Test Standard: API 598/ASME B16.34
Optinal:NACE MR-0175 Full Compliance
Spring Return Handle
Pneumatic actuator
