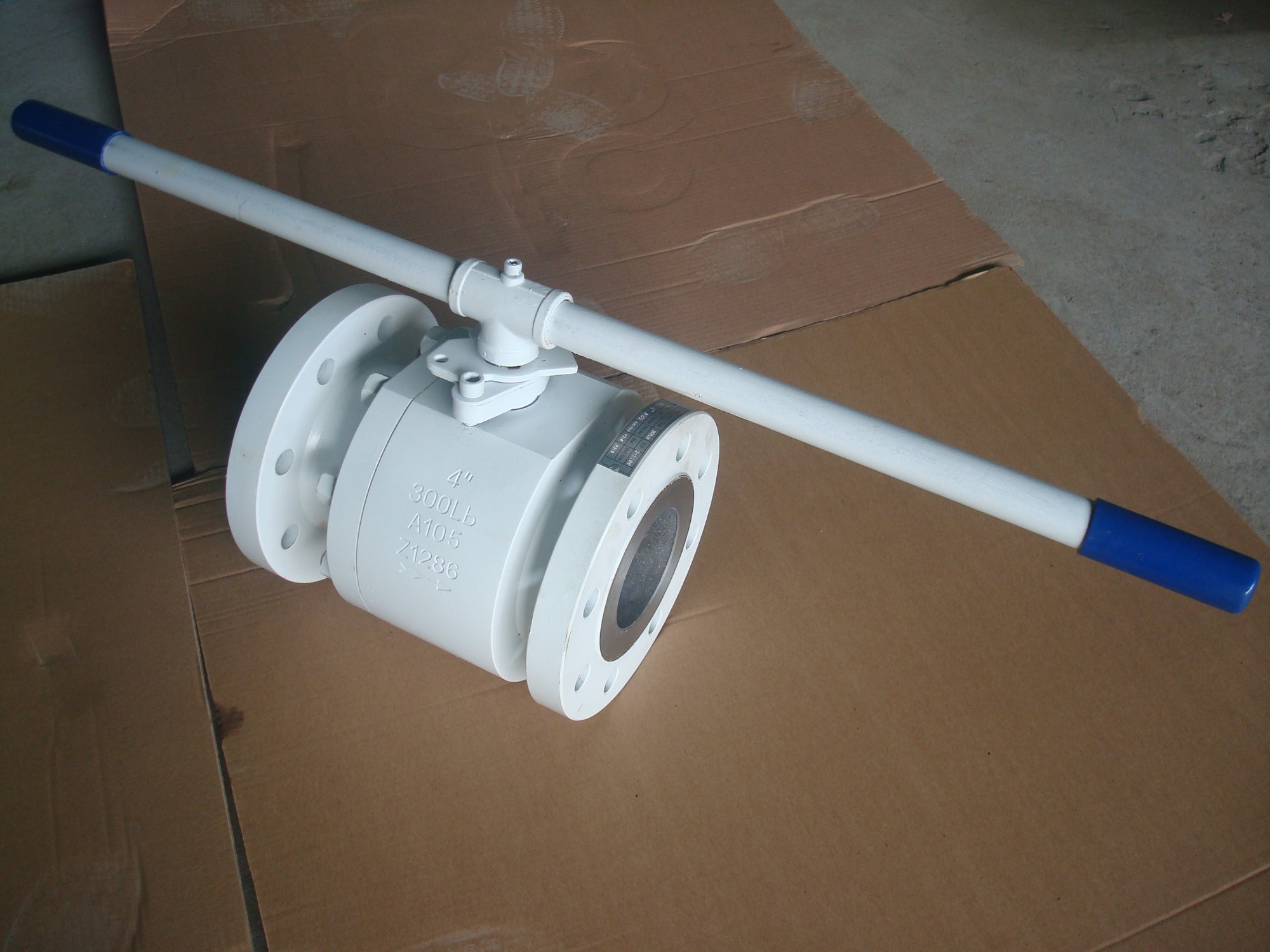

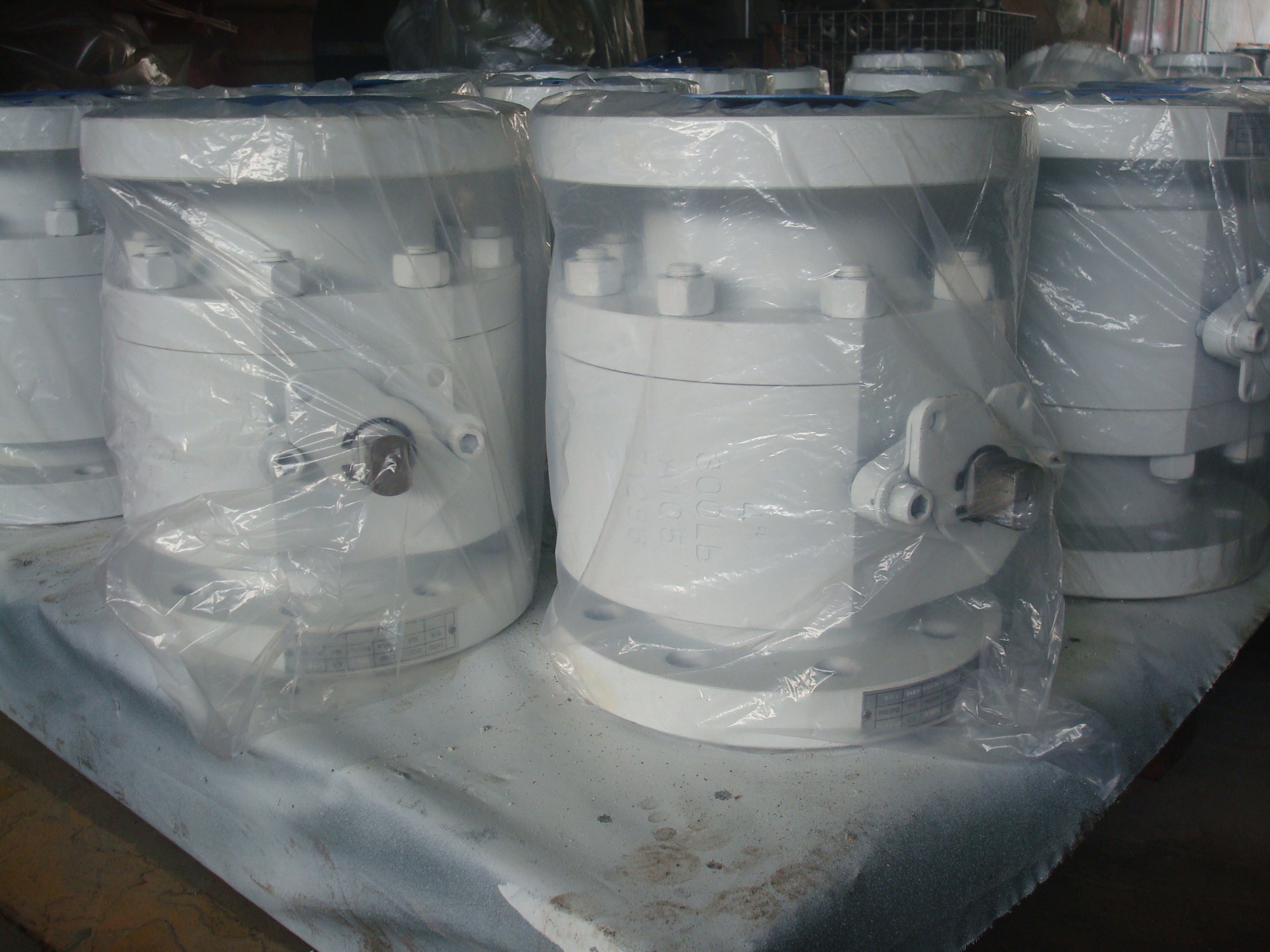

ANSI 150-2500LB FP Forged Steel A105 Split-Body Flange End Ball Valve

Product Item：BVF

150LB Flange Ball Valve

300LB Flange Ball Valve

600LB Flange Ball Valve

Split body Flange Ball Valve

150-1500LB Full Port Forged Carbon Steel A105 Floating Flange End Ball Valve

Port: Full Port/Reduced Port
Size: 1" to 8"
Pressure: 150LB to 1500LB
Body: Carton Steel A105 / Stainless Steel F316

Seat: RPTEF/TFM1600
Max Temp: 450ºF 232ºC
Ends: ASME B16.5-RF

ASME B16.5-TRJ

Features:

2-Piece Forged Design

API607 FIRESAFE

ISO 5211 Mounting Pad
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever & Spring Return Handle

Anti-Static Device

Pneumatic actuator

Test Standard: API 598/API 607/NACE MR-0175

Design Standard:ASME B16.34& ASME B16.10
