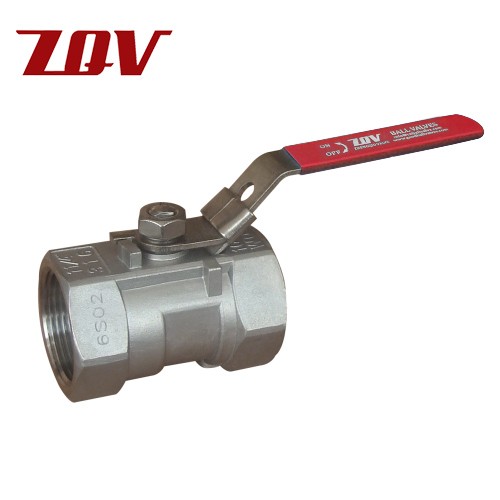

Threaded Ball Valve - Series S20/FS20
Size Range
¼ - 2" (8 - 50mm)
Body Materials
ASTM A351 Gr CF8M
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Stem Materials
ASTM A479 Type 316
Pressure Rating
2000 psi WOG (137 Bar)
Seat Materials
RPTFE
Shutoff Rating
Zero Leakage
Ball Materials
ASTM A351 Gr CF8M
Body Style
One Piece
Design Standard
MSS SP-110
End Connections
Threaded - NPT
Testing Standard
MSS-SP 72
Certifications
API607 7-th Edition, NACE MR0175
Ports
Reduced Port
Face to Face
Manufacturer Standard
Applications
General Service, Air, Water, Oil & Gas, Fire Safe
